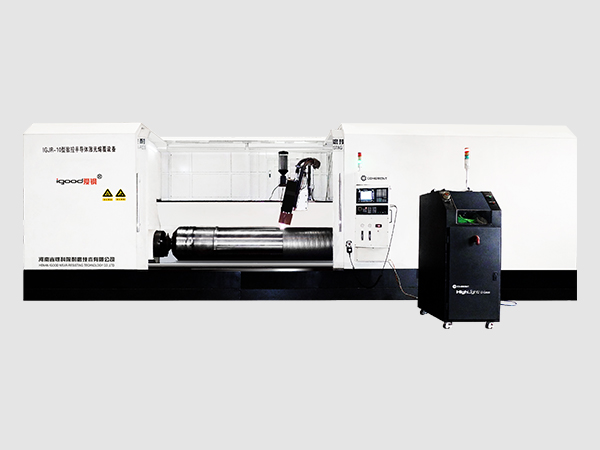

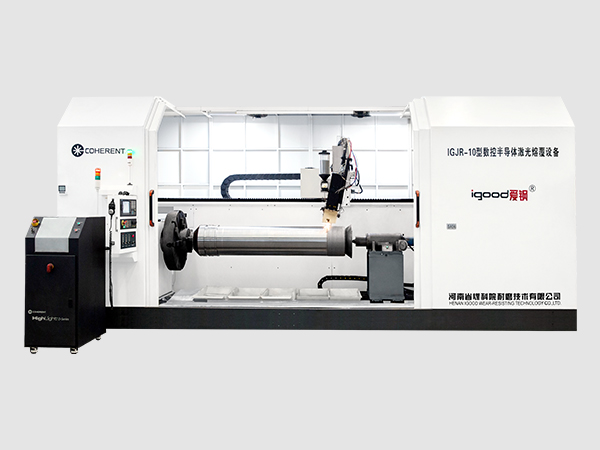

- Laser Cladding Equipment
- Founded in 2008, Henan Igood Wear-resisting Technology Co., LTD., is a high-tech enterprises. which is engaged in designing and manufacturing laser cladding equipment, semiconductor laser cladding machine, etc.
Brief introduction:
|
Total load |
26kw |
Maximum cladding length |
3500mm |
|
Output power |
10kw |
Machine work stroke |
3500*480*500mm |
|
Laser dimension |
12*30mm(rectangular spot, adjustable) |
Machine overall dimension (length x width x height) |
6500*2440*3082mm |
|
Cladding speed |
0~900mm/min |
Maximum load bearing |
5000kg |
|
Maximum cladding diameter |
800mm |
Weight |
6900kg |
PS: customized is acceptable.
Applications:
Wear and corrosion protection, such as:
Bearing Shafts
Hydraulic Shafts
Mining Equipment
steel roller
Remanufacturing
Configurations:
1.4 axis combined precision machine tools
2.10 kW diode laser
3.Accurate feeding system
4.Laser power supply
5. Laser Cladding controller
6.Double loop liquid cooling system.
Features and benefits:
1. Clean energy, and easy to auto-control
2.High power, low energy consumption, high electro-optic conversion efficiency (More than 55%)
3. Precision powder feeder system ensure the powder delivery is stable and dependable
4. Adjustable rectangular spot, High efficiency
5. Good beam quality and can run long time steadily
6. Perfect metallurgically bonded and fully dense coatings
7.Fully integrated systems
8.Minimal heat affected zone and low dilution between the substrate and filler material
